When a warehouse aisle, shop bay, or production floor traps hot, still air, a mounted circulator is the fix that does not cost you floor space. The Airmaster CA30WC is a 30-inch commercial air circulator that hangs from a wall or a ceiling and pushes up to 6,100 CFM across the room, so workers get moving air without a pedestal fan to trip over, roll around, or clean under. Facility and plant maintenance buyers reach for this model when box fans and drum fans have stopped keeping up and the fan needs to live permanently out of the forklift path.
Built for
- Warehouses, loading docks, and distribution aisles where stagnant heat builds overhead
- Machine shops and production floors that need constant air movement over work stations
- Commercial kitchens, laundries, and washdown rooms where a floor fan is in the way
- Gyms, garages, and repair bays that need spot cooling on demand at three speeds
- Agricultural and livestock buildings that need durable, permanently mounted airflow
Three speeds are the practical reason this fan replaces two: run it at 2,700 CFM as background circulation on a mild day, then step it up to 6,100 CFM when the doors are open and the afternoon heat sets in. Air velocity stays useful well down the room, measured at roughly 800 feet per minute at 10 feet and about 200 feet per minute at 60 feet, which is why it works in long aisles instead of only blowing on the person standing in front of it.
Two points worth setting expectations on. A circulator moves air, it does not lower the ambient temperature of the building. What it does is break up hot pockets and produce the evaporative cooling effect that makes a warm space workable. Second, moving this much air is not quiet. At 76 dBA on high, plan on shop-level noise rather than office-level noise.
Specifications
- Model: Airmaster CA30WC, part number 71573
- Blade diameter: 30-inch, three-blade galvanized steel propeller
- Airflow: 6,100 / 4,400 / 2,700 CFM at 1,100 / 800 / 600 RPM
- Motor: 1/4 HP, totally enclosed air-over PSC motor, ball bearing, Class B insulation
- Electrical: 115V, single phase, 60 Hz, 3.5 amps, 15-foot cord
- Oscillation: Non-oscillating, fixed-direction tilt

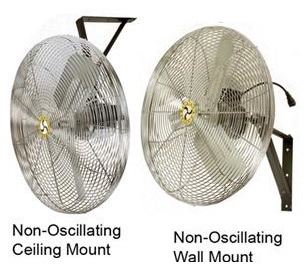

- Mounting: Wall or ceiling bracket included; safety cable kit supplied for overhead mounting
- Projection: About 20-1/2 inches wall mounted, about 22-1/2 inches ceiling mounted
- Sound level: 76 dBA
- Maximum ambient: 104 degrees F
- Weight: 49 lbs
- Listings: UL Listed, RoHS compliant
Frequently asked questions
Does this fan cool the room?
It circulates air rather than refrigerating it. Moving air produces an evaporative cooling effect on people and breaks up trapped heat, but it does not lower the building's ambient temperature the way an air conditioner does.
Can it mount on both a wall and a ceiling?
Yes. The CA30WC ships with mounting hardware for either position, and a safety cable kit is included for overhead installations.
How loud is it?
It is rated at 76 dBA on high speed, roughly shop-vacuum level. It is intended for warehouses, shops, and production areas rather than quiet office space.
Does it need to be hardwired?
No. It runs on standard 115V single-phase power and comes with a 15-foot cord.
How far does the airflow carry?
Published air velocity is about 800 feet per minute at 10 feet, 500 at 20 feet, and 200 at 60 feet, which is why it suits long aisles rather than a single work station.
