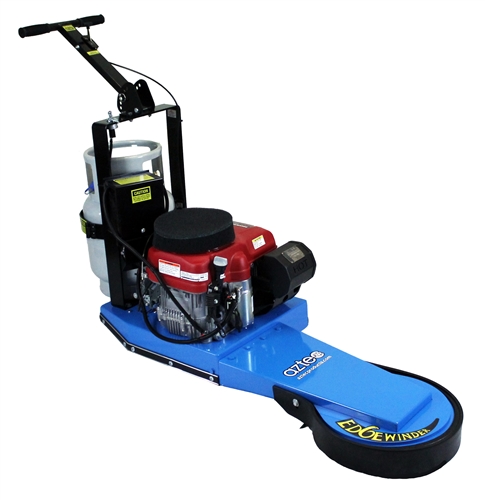

Every VCT stripping job comes down to the same problem: the open floor takes an hour and the edges take three. Baseboards, gondola bases, shelving legs and the strip of floor under a checkout counter are where old finish piles up thickest, and where a walk-behind machine cannot reach. The Aztec Edgewinder is built for exactly that strip of floor. With a deck under 4 inches tall and a 26-inch reach, it slides back under racks and fixtures that stop a conventional swing machine at the aisle, and its 14-inch Stratagrit brush cuts through layers of built-up finish at up to 50 linear feet per minute.
It is a propane machine, which is the point. Contractors running overnight strip-outs in grocery, big-box retail and school corridors choose propane because there is no cord to drag around gondola legs, no extension run back to a panel, and no drop in power as the shift goes on. The 13 hp PurePower LPG 390-series engine starts from a key with a battery start, and a catalytic muffler keeps emissions and noise at levels intended for interior commercial work.
Use Cases
- Retail strip-outs around gondolas and racks. The low deck and long reach get the machine under fixed shelving so the crew is not on hands and knees with a doodlebug for hours after the main floor is done.
- Perimeter and baseboard edges. The flexible guard rides close to walls and holds stripper solution against the floor instead of throwing it at the base moulding.
- Schools, corridors and cafeterias. Summer recoat programs where the finish is heavy and the deadline is fixed, and where a propane machine avoids running cords through fire doors.
- Under checkouts, casework and equipment lines. Anywhere a swing machine physically will not fit but the floor still has to look the same as the rest of the room.
What Sets It Apart
The three things crews mention most are the guard, the reach, and the labor math. The flexible guard design contains the strip solution, so the machine can work in close to walls, shelving legs and corners without slinging slurry. The 26-inch reach combined with a sub-4-inch deck height is what lets one operator finish edges standing up instead of kneeling. And because edge work is the part of a strip job that blows the estimate, a machine that turns hours of hand scraping into a pass at 50 feet per minute is usually justified on labor within a handful of jobs rather than over a season.
Specifications
- Brush: 14 in. (36 cm) Stratagrit
- Strip rate: up to 50 linear feet per minute
- Engine: 13 hp PurePower LPG 390 series propane, battery key start
- Deck height: under 4 in.
- Reach: 26 in.
- Guard: flexible design, contains strip solution for close wall and corner contact
- Emissions: catalytic muffler; UL and CGA approved, meets CARB and EPA standards
- Shipping weight: approximately 106 lb
- Model: Aztec 017-02 Edgewinder
Frequently Asked Questions
What is the Edgewinder actually for?
It is an edger and low-profile stripper for the perimeter and under-fixture areas of a VCT strip job, the areas a full-size walk-behind machine cannot physically reach. It complements a main stripping machine rather than replacing it.
Why propane instead of electric?
Propane removes the cord, which matters when the machine has to work under and around fixed shelving, and it holds power over a long overnight shift without a voltage drop from a long extension run.
Is it approved for indoor use?
It is UL and CGA approved and meets CARB and EPA emissions standards, and it includes a catalytic muffler. As with any propane floor machine, follow the site ventilation and CO monitoring practices your jurisdiction and facility require.
How far under shelving will it reach?
The deck is under 4 inches tall with a 26-inch reach, which covers most gondola and rack undersides in retail and grocery settings.
What brush does it use?
A 14-inch Stratagrit brush, which is the aggressive grit-impregnated brush used for cutting through layered floor finish.
Does the guard keep stripper off the baseboards?
The flexible guard is designed to contain the strip solution at the brush so the machine can run in close to walls, shelving legs and corners without throwing slurry onto base moulding.
Discount Cleaning Products is an authorized Aztec dealer and has supplied floor stripping and surface prep equipment to contractors, schools and retail facilities across the United States for years. Our US-based team can help you match brushes, pads and propane accessories to the machine and to the finish you are cutting.
