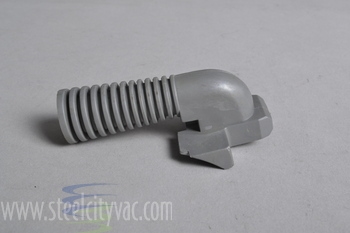

The cord protector is the molded sleeve that supports the DC07 power cable where it enters the machine body. It exists for one reason: a mains cable almost never fails in the middle of its run, it fails at the entry point, where every wind-and-unwind cycle bends the same half-inch of conductor. The protector spreads that bend over a longer radius so the copper inside is not worked to failure.
Built for
- DC07 owners who have already replaced or are about to replace the power cord
- Machines whose original sleeve has split, hardened or gone missing during a past repair
- Anyone refurbishing a used DC07 and putting the electrical side right before resale
- Households that wind the cord tight around the hooks after every use
Use cases
Two jobs bring people to this part. The first is preventive: the cord is fine, but the sleeve is cracked or gone, and the cable is now bending hard against a plastic edge every time the vacuum is put away. Replacing the sleeve before the cable is damaged is far cheaper than replacing the cable. The second is a companion fit - if you are already inside the machine swapping the power cord, this is the moment to renew the protector rather than reuse a tired one.
Specifications
- Type: cord protector and strain-relief sleeve
- Supplied as: the protector only - the power cord is a separate part
- Application: Dyson DC07 bagless upright vacuum
Fits
Distributors list this protector for the Dyson DC07 bagless upright. Dyson used different body mouldings across the DC07, DC14 and DC33 generations, so parts do not automatically carry across. Check the model number on your machine's label before ordering.
Frequently asked questions
What is the cord protector for?
It supports the power cable where it enters the machine and spreads the bend over a longer radius. Without it the cable flexes against a hard edge every time the cord is wound and unwound, which is where mains cables normally fail.
Does this include the power cord?
No. This is the protector sleeve only. On the DC07 the mains cable is a separate part, commonly listed by distributors as Dyson 905449.
Do I need tools to fit it?
Yes, in most cases. Getting to the cord entry on a DC07 generally means opening the machine, and DC07 repair guides call for a T15 Torx driver. Always unplug the vacuum before starting.
My cord looks frayed near the machine. Is the protector enough?
No. If the outer sheath is split or you can see conductors, replace the cable itself. A protector fitted over a damaged cord hides the fault rather than fixing it.
Will it fit a DC14 or DC33?
Treat that as unconfirmed. The DC07 body moulding differs from later models, so order the protector listed for your own model number.
