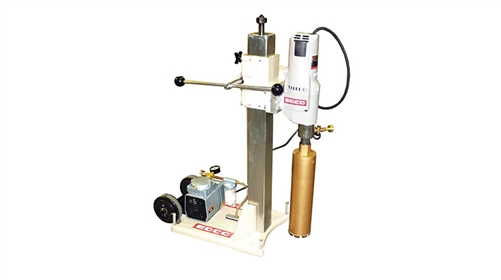

36" CORE DRILL RIGS
Extra heavy walled 3 1/2" square tube column, largest in the industry
Brass wear strips and easy carriage adjustment allows precision tolerance drilling
12" diameter drill bit capacity standard; expandable in 2" increments with optional motor spacer blocks.
Choice of 15 and 20 amp Milwaukee motors
Standard with combination vacuum anchor base
Premium large diameter wheels
Electric circuitry incorporated into conveniently located ammetercontrol center
IDEAL FOR:
Plumbing
Railing installation
Sign installation
Welding
Concrete core engineers
|
36" CORE DRILL RIG
|
|
Part# 97200EV
|
Power Electric
|
Phase Single
|
|
AMPS 375
|
*RPM
- Low / High 375 / 750
|
Length
- Base / Overall 19.25" / 30"
|
|
Width 14"
|
Height 36"
|
Weight 159
lbs
|
|
36" CORE DRILL RIG
|
|
Part# 97220EV
|
Power Electric
|
Phase Single
|
|
AMPS 20
|
*RPM
- Low / High 300 / 600
|
Length
- Base / Overall 19.25" / 30"
|
|
Width 14"
|
Height 36"
|
Weight 159
lbs
|
