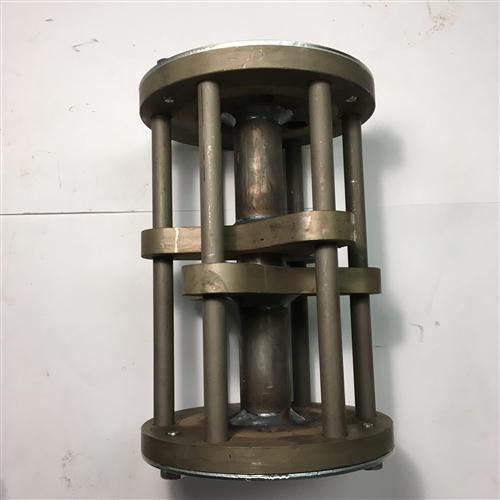

The Edco 65050 is the genuine 6-shaft replacement drum for the Edco CPM-8 8-inch walk-behind scarifier. Concrete surface-preparation contractors and coatings-removal crews use this drum to restore a worn or out-of-balance CPM-8 to factory cut geometry without buying a complete new machine. Because the cutter pattern is loaded onto the shafts at the shop, the same drum can be configured with carbide cutters for surface profiling, beam (milling) cutters for thermoplastic line-stripe removal, or a mixed pattern for thin-film coatings.
Built for
Concrete surface preparation contractors running an Edco CPM-8 as a primary or backup scarifier, who need a known-good drum on the truck so a worn-out or damaged drum does not pull a crew off the job.
Coatings and floor-prep specialists who maintain multiple cutter patterns - aggressive carbide for spalled or heavily contaminated concrete, beam cutters for thermoplastic removal, and finer patterns for paint and thin-film coatings - and want a second drum dedicated to a particular pattern so changeovers in the field are a drum swap rather than a full cutter rebuild.
Restoration and traffic-stripe removal teams using the CPM-8 to take down airport runway markings, parking-lot lines, or thermoplastic crosswalks. Keeping a spare 65050 drum eliminates downtime when bearing wear or impact damage takes the working drum out of service.
Typical use cases
Surface profiling on concrete floors before epoxy, urethane, polyaspartic, or methyl-methacrylate coatings. Removal of traffic paint, thermoplastic line stripes, glue and mastic residue, rubber, and tire marks. Roughening of slick concrete in food-processing plants, parking decks, and warehouses to improve traction. Cleaning of weld splatter, slurry, and laitance on new concrete.
Why a six-shaft drum
The six-shaft configuration spreads the cutting load across more impact points than a 5-shaft drum, which gives a more uniform finish and longer cutter life on heavy-removal work. It also accepts a wider range of cutter patterns, so the same machine can be tuned for aggressive removal one day and a finer profile the next.
Compatibility
The 65050 is the factory-supported drum for the Edco CPM-8 8-inch walk-behind scarifier family. The CPM-8 cuts an 8-inch-wide path up to 1/8 inch deep per pass and removes traffic lines at roughly 800 to 1,000 lineal feet per hour at production rates, so a sound drum is the difference between hitting the daily target and leaving work on the floor.
Cutters and spacers
The 65050 is the drum and shafts only. Most CPM-8 owners run the drum loaded with 78 carbide cutters and 215 spacers (the factory CPM-8 cutter pack), but the cutter pattern can be changed to match the job. Order cutters and spacers as a separate line. We stock both the carbide cutter pack and the beam/milling cutter pack for thermoplastic removal.
Frequently asked questions
Which Edco scarifier does the 65050 drum fit?
The 65050 is the genuine 6-shaft drum for the Edco CPM-8 8-inch walk-behind scarifier family, including the CPM-8G gas chassis, CPM-8E single-phase 115V chassis, and CPM-8 three-phase 230V chassis.
Does the drum come with cutters?
No. The 65050 is the drum and shaft assembly only. Carbide cutters and spacers (or beam/milling cutters for line-stripe removal) are ordered separately so the cutter pattern matches the job.
How do I know when to replace the drum?
Replace the drum when the bearing surfaces are worn, the drum is bent or out of balance after striking an obstruction, or when shaft holes have elongated to the point that cutters move under load. Vibration at full RPM and uneven cut depth across the 8-inch path are the most common signs.
Will this drum work with older CPM-8 chassis?
The CPM-8 family has used both 6-shaft and 5-shaft configurations over the years. The 65050 is the current 6-shaft drum and is the factory-supported replacement for legacy CPM-8 chassis built to accept the 6-shaft drum. If your older machine has a 5-shaft drum, contact us with the serial number and we can confirm compatibility before you order.
Is this a genuine Edco part?
Yes. We are an authorized Edco dealer and the 65050 ships as a genuine factory drum, not an aftermarket reproduction.
Discount Cleaning Products is an authorized Edco dealer. The 65050 ships as a genuine factory part with full Edco warranty support, and our US-based product team can confirm fitment, recommend the right cutter pattern for your job, and source other CPM-8 wear parts (cutters, spacers, bearings, belts) from the same order.
