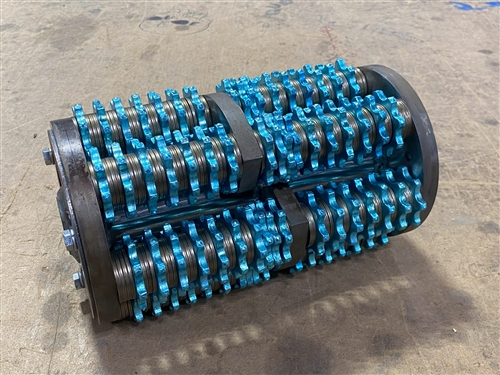

The EDCO 65270 is the bare 6-shaft drum body for the CPM-10 10-inch walk-behind concrete scarifier. Concrete contractors, surface-prep specialists, and rental fleets order this drum when they want a second, ready-to-load drum on the trailer for zero-downtime cutter changeouts, or when an existing drum has worn past the point where new cutters can true-up the cut.
Why this drum: The CPM-10 is EDCO's heavier-duty 10-inch crete-planer for production scarification, aggressive coating removal, and large-format surface prep. Running a second drum is the standard contractor practice. Instead of stopping the job to rebuild a worn cutter pack on a single drum, crews swap to a freshly-loaded drum in minutes and rebuild the spent one back at the shop. That single workflow change typically picks up an hour or more of billable run time per cutter cycle, which on a CPM-10 doing 200-300 sq ft per hour is real money. Forum discussions on production concrete-prep work routinely call out the second-drum-on-the-truck approach as the difference between profitable and break-even days.
What you get
- 1 x EDCO 65270 6-shaft drum body for CPM-10
This drum ships empty. To put it to work, pair it with the A207 6-Shaft Startup Pack (102 CP308-T cutters, 252 spacers, 6 shafts) for general carbide work, or the A208 8-Shaft pack for fine scarifying. Steel cutters are also available for asphalt and softer materials.
Built for these jobs
- Production scarification. Larger working width than the CPM-8 keeps single-pass progress fast on warehouse, parking-deck, and aviation hangar floors.
- Heavy coating removal. Strip thick epoxy, urethane, and rubber coatings before re-coating.
- Trip hazard removal. Quick-grind sidewalk lips back into ADA tolerance.
- Traffic line removal. Knock down painted lines on warehouse floors and parking decks at 1,200-1,500 lineal feet per hour.
- Surface profiling. Roughen smooth concrete to CSP 4-7 before overlays and waterproofing systems.
Frequently asked questions
Is the 65270 the same as the CPM-8 6-shaft drum?
No. The 65270 is sized for the CPM-10 10-inch machine. The CPM-8 uses a different 8-inch drum (65050). The drums are not interchangeable; the housing widths differ.
What cutters fit this drum?
The 65270 is rated for EDCO CP308-T 8-point carbide cutters, the CP206-T 6-point carbide cutter, or matching steel flail cutters. Cutter selection depends on the material being removed - carbide for concrete and coatings, steel for asphalt and adhesives.
Why order the empty drum instead of a preloaded one?
Crews who already keep cutter packs in inventory order the bare drum and load it themselves. If you do not stock cutters, the 65050C (CPM-8 preloaded drum) or equivalent CPM-10 preloaded options may be a better choice.
Can I run the 65270 dry?
The CPM-10 is a dry-cut machine. The drum runs without water. EDCO recommends a vacuum hookup for dust capture, especially for indoor work and silica-compliance jobs.
How long does a drum body last?
Drum bodies typically outlast 5-10 cutter rebuilds when run within EDCO spec. Replace the drum when the shaft holes wear out of round or the side flanges crack.
Why buy from Discount Cleaning Products
We are an authorized EDCO dealer with the 65270 in stock alongside the matching A207 and A208 startup packs, individual CP308-T and CP206-T cutters, and replacement shafts. Volume pricing on multi-drum orders for rental fleets.
