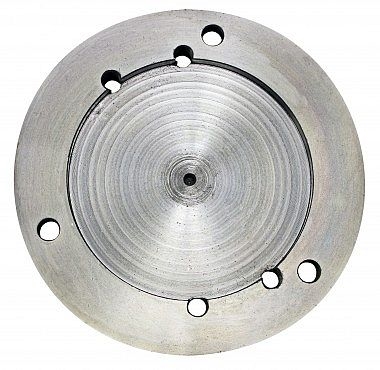

A Magna-Trap floor grinder normally runs individual magnetic tooling - but some jobs call for the coverage and consistency of a full 10-inch diamond disc. The EDCO 77618 adapter plate is the bridge: it bolts to the grinder and gives wedgeless Magna-Trap machines a flat, true mounting face for 10-inch diamond grinding discs, turning a tooling-plate grinder into a disc grinder in one hardware swap.
Use cases
Concrete surface prep. Run aggressive 10-inch diamond discs to profile slabs before coatings, overlays, or self-leveling underlayment.
Coating and mastic removal. PCD and crushed-diamond 10-inch discs chew through glue, thinset, and paint faster than segment-by-segment tooling on large areas.
Rental fleets. One adapter plus a shelf of discs lets a single Magna-Trap grinder serve customers who ask for grinding, glue removal, or prep - without stocking separate machines.
Specifications
- Genuine EDCO part 77618
- Function: adapter plate for 10-inch diamond grinding discs
- Fits: EDCO Magna-Trap (wedgeless) floor grinders with the 10-inch disc option
- Includes mounting screw hardware (EDCO item 10855)
- Compatible with EDCO 10-inch diamond discs and equivalent third-party 10-inch disc plates
Frequently asked questions
Do I need this adapter to run diamond discs on a Magna-Trap grinder?
Yes. Magna-Trap machines hold individual magnetic tooling out of the box; the 77618 provides the flat bolt-up face a full 10-inch disc requires. Without it, disc tooling has nothing to mount to.
Which grinders does it fit?
EDCO Magna-Trap wedgeless floor grinders that list the optional 10-inch diamond disc configuration - including single-disc and dual-disc models. Check your grinder manual for the diamond disc adapter illustration, or ask us with your model number.
Will third-party 10-inch discs work?
Most 10-inch diamond disc plates made for EDCO-pattern grinders bolt to the adapter. Match the disc bolt pattern to the adapter and confirm the grit and segment style suit your slab and material.
When should I use a disc instead of magnetic tooling?
Discs shine on big open floors where full-width, even contact speeds production. Individual Magna-Trap tooling is better for spot work, edges, and quick grit changes. Crews that do both keep the adapter in the toolbox.
Discount Cleaning Products is an authorized EDCO dealer with US-based customer service. Order the 77618 with your diamond discs and the grinder is ready for disc work the day the box arrives.
