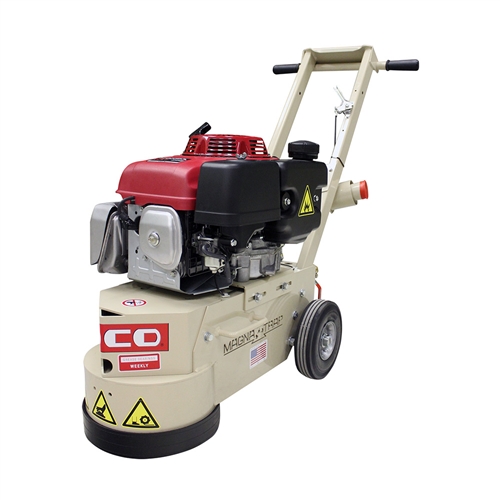

The EDCO 56600 TG-10 is the 11HP Honda gas turbo grinder EDCO calls its beast: a 10-inch single-disc machine built to tear into thick, hard coatings and leveling jobs that other Magna-Trap grinders cannot handle. Surface-prep contractors choose it when conventional grinders are too slow, because the TG-10 grinds up to four times faster.
Not every coating comes off with a standard grinder. Thick epoxy, stubborn mastic, heavy mil-builds and badly out-of-level slabs can stall a conventional machine and burn through tooling. That is exactly the job the TG-10 is built for - EDCO positions it as the most aggressive grinder in the Magna-Trap line, removing up to 1/8-inch per pass and working up to four times faster than a conventional grinder on those tough materials. The 11HP Honda gas engine makes it a fit for sites without convenient power or where an electric machine cannot supply enough amperage, and the rounded shroud still lets you grind right up to walls while the standard vacuum port keeps dust in check.
Use cases
The TG-10 is the right tool when the coating is thick, the slab is rough and speed matters:
- Aggressive removal of thick or hard coatings from rough concrete
- Leveling tasks and tough surface prep that stall conventional grinders
- Wet or dry grinding for a smooth finish on demanding slabs
- Production surface prep on industrial and commercial floors
Specifications
- 10-inch working width; grinds approximately 400-500 sq. ft. per hour at 1/16-inch with an EDCO diamond disc
- 11HP Honda gas engine; up to four times faster than conventional grinders
- Working depth up to 1/8-inch per pass to permeate the toughest materials
- Includes a 10-inch diamond disc and a standard vacuum port for dust control
- Rounded shroud grinds within 1/2-inch of any vertical surface and improves dust capture
- Tapered roller bearings with improved seals for longer life and less maintenance
- Rear-wheel-mounted leveling kit lets you adjust the disc or multi-accessory plate
Frequently asked questions
What makes the TG-10 different from a standard floor grinder?
The TG-10 is EDCO's most aggressive turbo grinder, built for thick, hard coatings and leveling jobs that standard Magna-Trap grinders cannot perform, and it grinds up to four times faster.
How much can the TG-10 grind per hour?
With an EDCO diamond disc the 10-inch path grinds roughly 400 to 500 square feet per hour at a 1/16-inch depth, with up to 1/8-inch removal per pass.
Can it grind close to walls?
Yes. The rounded shroud lets you grind within about 1/2-inch of any vertical surface while still controlling dust.
Does it grind wet or dry?
It grinds wet or dry for a smooth finish, and a standard vacuum port lets you connect a dust extractor for dry work.
