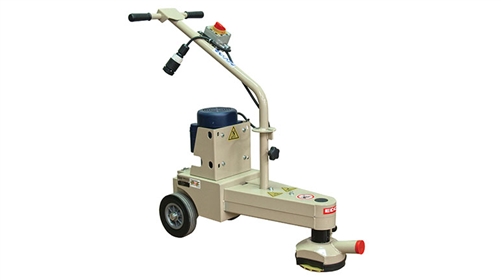

The EDCO TMC-7-2 (part 57200) is a 7-inch turbo edge electric concrete grinder built for polished concrete crews, flooring contractors and restoration specialists that need to match an edge finish to their main floor grind. A 2 HP, 1740 RPM motor on 115V power handles aggressive grinding cups for surface prep and finer diamonds for polishing passes, while the articulating frame gets the head flush against walls, doorways and obstructions.
Best for
- Concrete edge prep and polishing along walls, columns and base trim where larger riding or walk-behind grinders cannot reach
- Old adhesive, thinset and coatings removal in tile teardown and substrate prep work
- Small-area concrete surface prep under counters, in gutters and inside tight equipment rooms
Specifications
- Working width: 7 inches
- Motor: 2 HP, 115V, 1740 RPM, 18 A draw
- Frame: three-position articulating (left angle, right angle, straight)
- Shroud: four-position with vacuum port
- Coverage: 300 to 400 linear feet per hour at approximately 1/16 inch depth with a diamond cup wheel
- Head: flex-head standard, rigid head optional
- Bearings: tapered roller for reduced maintenance
Frequently asked questions
How do I match the edge finish to my main floor grind?

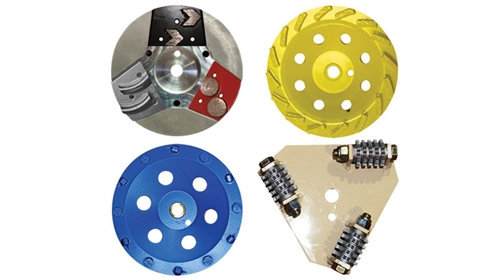

Use the same tooling family on the edges as on the field. If the main machine is running 30/40 grit metal-bond cups, edge with the equivalent 7-inch metal-bond cup. Let the head ride flat under its own weight - downward pressure or tilting causes half-moon scratches that show up at the next finer step.
Can the grinder reach all the way into a 90 degree corner?
No floor grinder reaches a tight inside corner. The TMC-7-2 gets within an inch or two of the wall in flush angle mode. Finish the last inch with a handheld diamond cup, triangular detail grinder or rubbing brick.
Does the dust shroud work in every grinding position?
Yes - the four-position shroud rotates with the articulating frame so dust capture stays intact in left-angle, right-angle and straight head positions when connected to a HEPA vacuum.
How fast can it grind concrete?
Plan on 300 to 400 linear feet per hour at about 1/16 inch removal with a diamond cup. Older, harder concrete or aggressive coating removal is slower and may benefit from added weights and progressive tooling.
Discount Cleaning Products is an authorized EDCO dealer with US-based customer service. Pair the TMC-7-2 with a HEPA dust extractor and your diamond program to keep silica exposure inside Table 1 limits.
