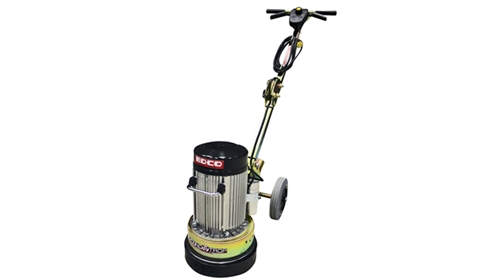

The Edco 58900 Magna-Trap Turbo-Lite (TL-9) packs aggressive concrete grinding into a compact, single-operator machine. With a 9-inch working width and a 1.5 HP motor that runs on standard 115V power, it lets concrete and flooring contractors prep surfaces, knock down high spots, and strip coatings without hauling in a heavy three-phase planetary grinder.
It is built for surface-prep pros: concrete contractors, floor-coating installers, and restoration crews who need a portable grinder that gets into tighter spaces and edges while still removing material fast.
What it is built to do
- Surface preparation and profiling before epoxy, urethane, or polished-concrete coatings.
- Removing thin-set, mastic, paint, and old coatings from concrete.
- Leveling high spots and smoothing rough or uneven slabs.
- Edge and detail grinding where a large planetary grinder will not fit.
Why the Turbo-Lite works for crews

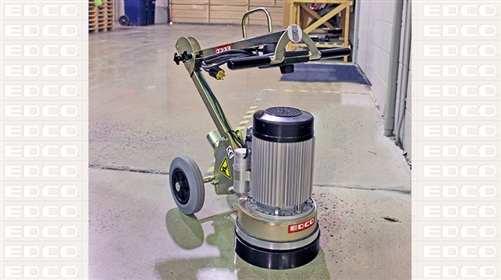

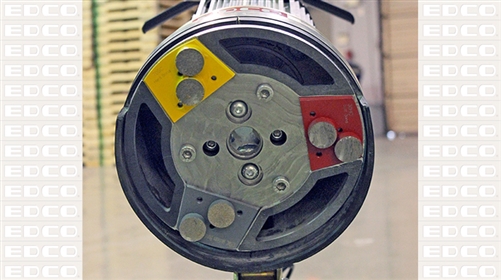

At about 94 pounds with a folding handle and built-in handgrip, the TL-9 is light enough to load, carry up stairs, and move between job sites, yet it still drives Magna-Trap diamond tooling hard. The Magna-Trap disc system snaps diamonds on and off in seconds so you can change grit for the substrate, and the 2-inch vacuum port keeps silica dust under control when paired with a compatible extractor.
Specifications
- Working width: 9 inches (model TL-9)
- Motor: 1.5 HP, 115V single-phase, 15 amps, about 1690 RPM
- Grinding rate: about 350 to 400 square feet per hour at 1/32-inch with diamond tooling
- Weight: about 94 pounds
- Dimensions: about 41 inches long, 16.5 inches wide, 41 inches high
- Dust control: 2-inch vacuum port (pairs with VAC-200 for OSHA-compliant dust collection)
- Includes: 3 Magna-Trap Double Dyma-Dots, 30-grit medium bond
Frequently asked questions
What is the Edco TL-9 Turbo-Lite grinder used for?
Concrete surface preparation, coating and mastic removal, light floor leveling, and smoothing high spots before applying coatings, overlays, or new floor coverings.
How much area can it grind per hour?
With diamond tooling it covers roughly 350 to 400 square feet per hour at a 1/32-inch cut, depending on the substrate and the grit you run.
Does it run on standard power?
Yes. The 1.5 HP motor runs on 115V single-phase at 15 amps, so it works from a standard heavy-duty outlet without three-phase or generator requirements.
Can I control the dust?

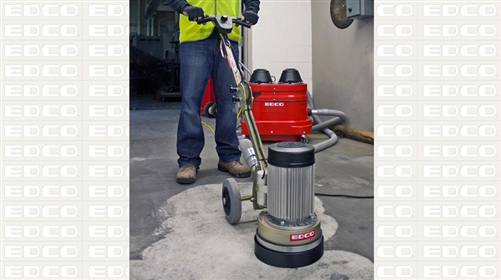

Yes. A 2-inch vacuum port connects to a dust extractor such as the VAC-200 for OSHA-compliant silica dust control during dry grinding.
What tooling comes with it?
It ships with three Magna-Trap Double Dyma-Dots in 30-grit medium bond, and the Magna-Trap disc system lets you swap diamonds quickly as the job changes.
Discount Cleaning Products is an authorized EDCO dealer, and this grinder ships with the full manufacturer warranty backed by US-based customer service. If you are deciding between single-disc and dual-disc grinders or choosing diamond tooling, our team can help you match the machine to your job before you order.
