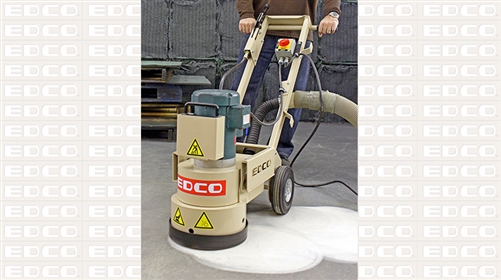

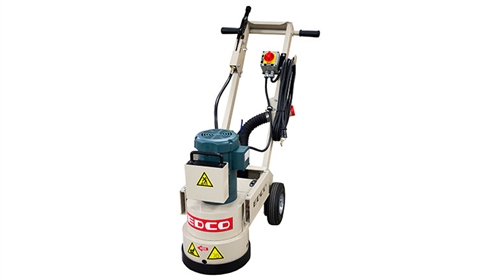

The EDCO 59800 Magna-Trap Single-Disc Floor Grinder is a professional surface-preparation machine for concrete contractors, flooring installers and maintenance crews. EDCO invented the modern concrete floor grinder and keeps refining it, and the Magna-Trap line combines leveling, better dust control and a wide range of slide-on accessories so you can prep, level and finish slabs with one machine.
Where older grinders relied on wooden wedges to hold tooling, the Magna-Trap slide-on system eliminates them entirely. That means quicker accessory changes, less downtime and a safer setup. EDCO's exclusive leveling system lets you adjust the machine's height and grind truly level, which is quicker, smoother, easier on the operator and increases accessory life.
Built for
- Surface profiling before coatings, overlays and epoxy
- Removing thin-set, mastic, paint and other coatings from concrete
- Smoothing high spots, trip hazards and uneven slabs
- General concrete cleanup and prep in commercial and light-industrial settings
An 11-inch working width grinds roughly 200 to 250 sq. ft. per hour at 1/32-inch with EDCO Dyma-Dots, and a laser-cut weight tray accepts up to 80 lbs of extra weight when you need more aggressive cutting. The machine includes one magnetic multi-accessory disc that accepts Dyma-Serts, Strip-Serts and all other Dyma-Slider accessories.
Specifications
- Working width: 11 inches
- Productivity: about 200 to 250 sq. ft. per hour at 1/32-inch with Dyma-Dots
- Weight tray: accepts up to 80 lbs of added weight

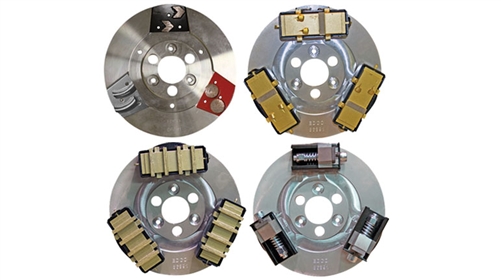

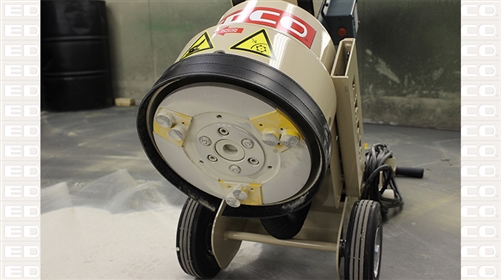

- Tooling: one magnetic multi-accessory disc included; accepts Dyma-Serts, Strip-Serts and Dyma-Slider accessories
- Note: three grinding accessories are required per loading and are not included
Discount Cleaning Products is an authorized EDCO dealer with US-based customer service. Not sure which Dyma-Serts or discs you need for your slab? Contact us and we will help you spec the right tooling.
Frequently asked questions
What can the Magna-Trap grinder remove?
It profiles concrete and removes coatings such as thin-set, mastic and paint, smooths high spots and prepares slabs for new finishes like epoxy and overlays.
What does wedge-less tooling mean?
EDCO's slide-on accessories lock on without the wooden wedges older grinders required, so accessory changes are faster and safer with less downtime.
How much area can it grind per hour?
With an 11-inch working width and EDCO Dyma-Dots, it grinds roughly 200 to 250 sq. ft. per hour at 1/32-inch per pass.
Are grinding accessories included?
One magnetic multi-accessory disc is included. Three grinding accessories are required per loading and are sold separately, so you can match the tooling to your specific job.
