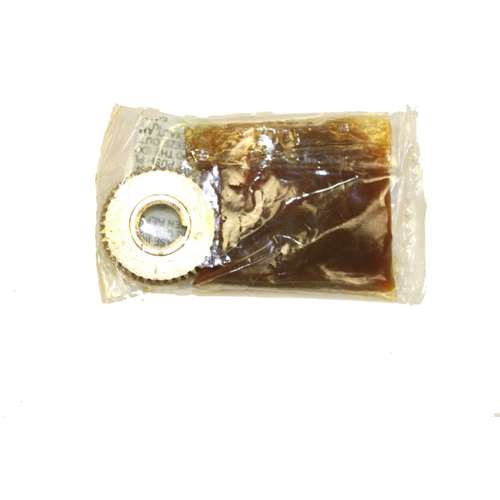

The Koblenz left-hand gear (service part 46-1718-9) is the driven gear for the left brush spindle inside Koblenz twin-brush shampoo polishers. Koblenz supplies it as a service part with a pack of gearbox grease in the bag, so the gearbox can be repacked at the same time the gear is replaced. It is the counterpart to the right-hand gear, part 46-1717-1; one of each is fitted per machine.
Specifications
- Koblenz service part number: 46-1718-9, listed by Koblenz as "left gear w/grease"
- Quantity used per machine: 1
- Grease: included in the bag with the gear. Koblenz's own replacement procedure directs that all of the supplied grease be used, with most of it applied at the contact zone of the gears
- Matching right-hand gear: 46-1717-1
- Bulk gearbox grease: a separate Koblenz part, 46-2069-6
- Appears in the Koblenz parts breakdown as both an external and an internal machine part
Fits
Koblenz shampoo polisher models P-1800, P-2500-A and P-2600, per the Koblenz Electrica service manual and parts list covering those three machines. Confirm fitment against your machine's model number before ordering.
Koblenz does not publish a material or tooth count for this gear, so we do not list either. Discount Cleaning Products is a US-based dealer for floor machine service parts, and we can help identify the correct gear set if you are rebuilding a Koblenz gearbox.
