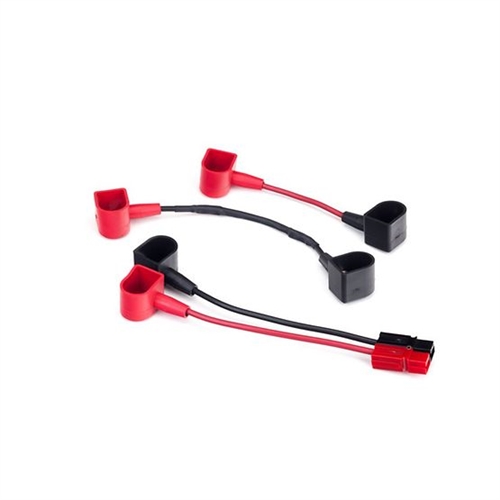

Most GoCartVac machines that stop running are not broken machines - they are broken connections. The battery wiring harness carries every amp the vacuum draws, it sits in the box assembly with the battery, and it lives in the one part of the cart where heat, vibration and the slow chemistry of a lead-acid battery all meet. ProTeam part 106216 is the OEM battery wiring harness kit, supplied as a set, and it is the part to look at when a machine runs intermittently, will not power up, or has visible corrosion at the battery connections.
This is a diagnostic part as much as a repair part. Service techs order it after ruling out the battery and charger, and maintenance managers order it when a cart has become unreliable in a way nobody can pin down. It is far less expensive than the components on either side of it, which is why it is usually the right thing to replace first.
It is worth being methodical here. A harness that looks acceptable can still have corroded strands inside the insulation, and that shows up as a machine that works on the bench and dies under load.
Use cases: what this part is built for
- Chasing an intermittent or dead GoCartVac. A harness with a corroded conductor is a classic cause of a machine that runs, then does not, with no obvious pattern.
- Replacing corroded battery circuit wiring. Lead-acid batteries produce corrosion. Once it travels up the wire, cleaning the terminal does not fix it.
- Repairing heat or vibration damage. Chafed or melted insulation in the battery compartment is a fire and short risk, not a cosmetic problem.
- Completing a battery replacement properly. When a battery is replaced after a long failure, the harness that sat corroding next to it is usually due as well.
Specifications
- ProTeam part number: 106216
- Manufacturer part name: Kit, Battery Wiring Harness
- Fits: ProTeam GoCartVac battery-powered cart vacuum
- Parts list reference: Item 27, Emerson GoCartVac parts list
- Sold as: One set
- Type: OEM ProTeam replacement part
Related parts on the same machine
ProTeam publishes several related items on the same circuit: the battery harness 106278, the charging harness with connectors 106277, a red number 8 AWG battery lead 106279, and a fusible-link number 8 AWG battery lead 106280. The battery itself is 105828, a 12V 37AH lead-acid unit, and the battery control module is 105496. If a harness has failed from corrosion, inspect the leads and the module before closing the box.
Frequently asked questions
How do I know the harness is the problem and not the battery?
Test the battery under load first. A battery that reads correctly at rest but collapses under load is a battery problem; a machine that reads correctly at the battery but not at the vacuum is pointing at the harness or the leads between them.
Does 106216 include the battery leads?
ProTeam lists the number 8 AWG battery leads separately as 106279 (red) and 106280 (fusible link), and the battery harness as 106278. 106216 is published as Kit, Battery Wiring Harness. Order the leads alongside if yours are corroded.
Does it include the battery?
No. The GoCartVac battery is 105828, a 12V 37AH sealed lead-acid unit.
Is this safe to install in-house?
Maintenance staff who are comfortable working on battery circuits regularly do this repair. If you are not, have a qualified technician do it - this harness carries the full current of the machine.
Is this an OEM ProTeam part?
Yes. 106216 is the genuine ProTeam part number published in the Emerson GoCartVac parts list.
