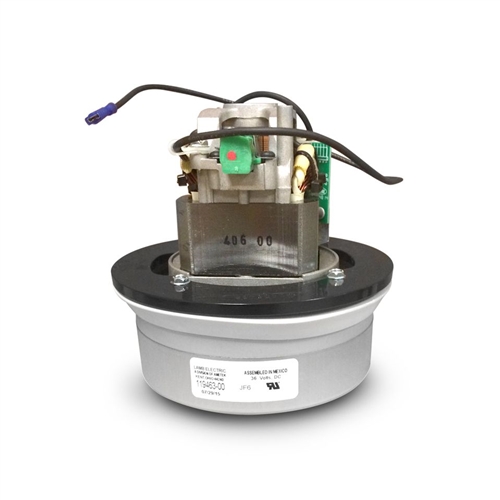

When a battery-powered ProTeam GoCart Vac loses suction or stops running, the fault is rarely just one part. The ProTeam 103617 motor assembly is ordered as a complete service package for exactly that reason: it brings the 36 volt DC motor together with the seal, the compression ring, and the battery control module, so a tech can restore a machine in one go instead of diagnosing and ordering three parts across three weeks. It is a repair-shop part, bought by the people who keep a cordless cleaning fleet on the floor.
Built for
- Facility and contractor maintenance shops servicing ProTeam GoCart Vac cordless units
- Fleet operators holding a spare motor assembly to cut crew downtime when a machine drops
- Machines with gradual suction loss traced to a leaking motor seal rather than the motor itself
- Repairs where the battery control module is also suspect and needs replacing at the same time
Specifications
- Part number: ProTeam 103617
- Type: Complete 36 volt DC motor assembly
- Included: 36V DC motor with crimps, carbon brush set, compression ring with screws, tetraseal gasket, and battery control module
- Machine: ProTeam GoCart Vac, where it appears on the manufacturer parts diagram as a grouped assembly
Fitment note: Fitment is documented for the GoCart Vac. ProTeam's cordless backpacks, including the GoFree Flex family, use different 36 volt motor part numbers, so do not assume this assembly crosses over. Motor wattage, amperage, and RPM are not published for this part.
Frequently asked questions
Can I just replace the carbon brushes instead?
Often yes. ProTeam sells a standalone carbon brush set and a bare motor separately. The 103617 assembly is the right choice when the seal, compression ring, or battery control module also need replacing.
What does the compression ring do?
It seals the motor to the housing. When it fails, air leaks past the motor and the machine loses suction even though the motor itself is fine.
Does this fit a GoFree Flex backpack?
Not confirmed. The documented fitment is the GoCart Vac, and ProTeam's cordless backpacks carry different motor part numbers. Check the parts diagram for your specific machine.
Why buy the whole assembly instead of the individual pieces?
It removes the guesswork. On a machine that has lost suction gradually, a worn motor and a tired seal usually arrive together, and ordering them as one part avoids a second round of downtime.
Is this a job for an in-house tech?
Yes, for a shop that already services its own equipment. It involves opening the machine, disconnecting the battery, and handling the control module, so it is not a field repair.
Getting the right part the first time
- Match by part number from your machine's parts diagram or model plate rather than by model name alone. ProTeam has revised most of its machine families more than once, and parts that look identical are often not interchangeable between generations.
- Check the tool connection diameter before ordering anything that attaches to a wand or a hose. The 1-1/4 inch and 1-1/2 inch platforms do not interchange, and mismatched diameter is the most common ordering mistake on ProTeam accessories.
- Unplug the machine, or disconnect the battery on a cordless unit, before beginning any service work on a motor, hose, or filter housing.
- If you are not sure which revision you have, send us the model and serial number from the plate on the machine and we will check it against the current parts diagram for you.
