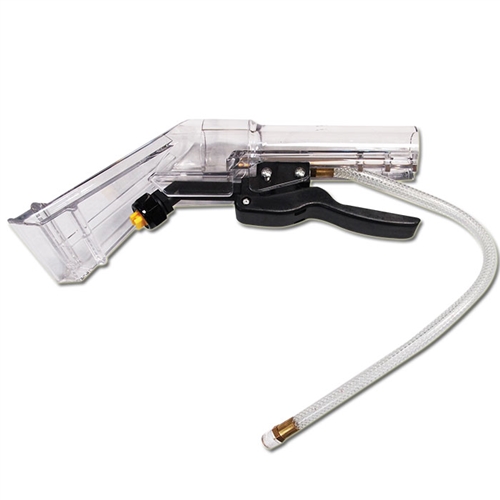

The Sandia Spot-Xtract 10-0500-I is a 4-inch clear plastic upholstery hand tool built for technicians who need to see the spot they are working, not guess at it. Carpet cleaners, auto detailers, and hotel housekeeping crews use this tool on upholstered furniture, vehicle seats, mattresses, and carpeted stairs - anywhere a full-size wand is too big to maneuver. The transparent head shows soil and recovery water moving through the tool in real time, so you stop passing over a spot the moment it runs clean instead of over-wetting the fabric.
Built for
This hand tool is the workhorse attachment for portable spot extraction. Hotels and property managers keep one with the spotter cart for guest-room touch-ups between deep cleans. Auto detailers rely on the narrow 4-inch head for seats, door panels, and floor mats. Restoration contractors and janitorial crews use it for upholstery, office chairs and cubicle panels, and spot work on commercial carpet where dragging out a larger machine is overkill. Because the head is clear, it also doubles as a teaching tool for new techs - they can see exactly how many dry passes it takes to pull a spot.
The internal-hose design matters: this version (10-0500-I) connects to Sandia Spot-Xtract extractors that route the solution line inside the vacuum hose. If your machine has an external solution line running alongside the hose, you need the external-hose version instead. And because the head is plastic, it is rated for machines without heat only - heated extractors will deform the housing over time.
Specifications
4-inch clear-view plastic head with internal spray jet. 1.5 inch vacuum hose connection. 1/4 inch threaded solution line connection. Rated for solution pressure up to 75 PSI. For use with Sandia 2 and 3 gallon Spot-Xtract extractors with internal hoses and no heat. Covered by the Sandia warranty policy.
Frequently asked questions
Does this fit heated spot extractors?
No. The 10-0500-I has a plastic head and is rated for non-heated machines only. Heat from a heated extractor can warp or crack the clear housing, so Sandia offers stainless tools for heated units.
What is the difference between the internal and external hose versions?
The 10-0500-I connects to extractors whose solution line runs inside the vacuum hose. The 10-0500-E is the same tool for machines with an external solution line clipped alongside the hose. Check which hose setup your spotter has before ordering.
Will it work with non-Sandia spotters?
It is designed for Sandia Spot-Xtract 2 and 3 gallon machines, but it uses a standard 1.5 inch vacuum cuff and 1/4 inch threaded solution connection, so it fits many compact extractors with the same fittings and 75 PSI or less of pump pressure.
Why choose a clear head over stainless steel?
A clear head lets you watch the recovery stream, so you can see when soil stops lifting and avoid over-wetting upholstery. Stainless tools are more durable around heat but hide the cleaning action.
Discount Cleaning Products is an authorized dealer with US-based customer service. Our team works with janitorial contractors, facility managers, and restoration professionals every day, so if you are not sure this is the right fit for your equipment or your cleaning program, contact us before you order and we will help you match the correct product.
