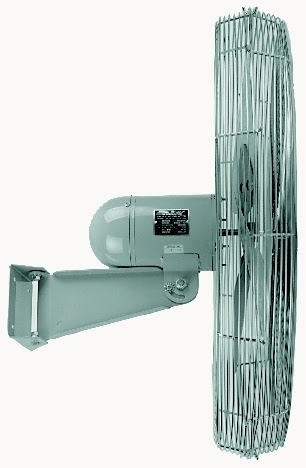

The TPI ACU30W is a 30-inch wall-mount industrial circulator built for warehouses, manufacturing floors, dock bays, gyms, and big-box back rooms - any space where the building HVAC moves the air slowly and people or product need direct air movement. It is a step up from the typical hardware-store wall fan in three ways that matter: a totally enclosed motor that survives dust and condensation, OSHA-compliant guard spacing out of the box, and a manually adjustable oscillating yoke that points the airflow where the operator needs it.
Why a 30-inch wall mount instead of a floor fan or ceiling fan. Floor fans take up floor space, get knocked over by forklifts, and trip people in walking lanes. Ceiling fans destratify the air column but they do not move it laterally across a workstation. A 30-inch wall fan mounted 8-12 ft up clears the work area, throws air 40+ ft horizontally on high speed, and survives in spaces where a residential-grade unit would have a motor failure inside a year.
Specifications
- Blade diameter: 30 inches, aluminum
- Motor: 1/4 HP, 120V single-phase, PSC type, totally enclosed (TEAO), ball bearing
- Speeds: 2 (high / low), pull chain switch
- Approximate airflow: ~8,500 CFM on high
- Mount type: wall-mount yoke with manual oscillating bracket
- Guards: heavy-duty steel, OSHA-compliant cage spacing
- Power: standard 120V plug, ~5 ft cord
Where the ACU30W belongs
- Manufacturing and machining floors. Air movement at the operator station improves throughput and reduces fatigue.
- Warehouse pick-and-pack zones. 30-inch wall units mounted along racking runs keep workers cool without blocking forklifts.
- Loading docks and shipping bays. Survives temperature swings and dust where a residential fan does not.
- Gyms, fitness studios, and martial arts dojos. High CFM, OSHA guards keep the unit safe around movement and dropped weights.
- Auto-repair and detail shops. Ventilates fume cabinets, paint-prep areas, and wash bays.
Frequently asked questions
Does it oscillate automatically?
The ACU30W has a manual oscillating yoke - the operator points it where the airflow is needed and tightens the bracket. It is not a motorized oscillator. For motorized oscillation, look at TPI's CACU series instead. Most industrial buyers choose the manual yoke because the oscillating motor on automatic units is the most common failure point.
Is the motor safe in a dusty environment?
Yes. TEAO (totally enclosed, air over) means the motor housing is sealed and cooled by airflow over the case rather than air drawn through it. That keeps dust, lint, and humidity out of the windings - the failure mode that kills residential fans within months in industrial use.
What height should it be mounted?
For a 30-inch wall fan throwing air across a floor, 8-12 ft is the sweet spot. Lower than 7 ft and the operator is in the cone of high-velocity air, which is fatiguing on a long shift. Higher than 12 ft and the air arrives at the work surface diffuse and slow.
Does it come with the wall mount hardware?
Yes - the wall-mount yoke is integrated. The buyer supplies appropriate fasteners for the wall material (lag bolts into framing, anchors for masonry, through-bolts for metal building columns).
Will it run on a standard wall outlet?
Yes. 120V, standard NEMA 5-15 plug, approximately 4 amps on high. Any standard 15A or 20A circuit handles it. Multiple fans on the same circuit add up - count amps when planning a row.
Why order the TPI ACU30W from Discount Cleaning Products
Stocked unit. TPI Corporation is a U.S. manufacturer with a strong service track record and the ACU30W has been the workhorse 30-inch wall fan in warehouse fleets for years. If you are mounting a row of these along a rack aisle, give us a call - we can quote freight on quantities and walk through guard clearance for your facility.
