TPI CPB 36-D 36" 2-Speed Fixed Direct Drive Industrial Drum Fan, 1/3 hp, 5,400 CFM, CPB36D


TPI CPB 36-D 36" 2-Speed Fixed Direct Drive Industrial Drum Fan, 1/3 hp, 5,400 CFM, CPB36D

Alternative Views:


Sale Price: $452.26
Estimated Shipping Cost: $120


Product Code: CPB36D
Quantity:

Description

TPI CPB 36-D 36" 2-Speed Fixed Direct Drive Industrial Drum Fan, 1/3 hp, 5,400 CFM, CPB36D

2 speed settings ensure versatility to suit the space and ambient temperature
Powerful 1/3 hp direct drive motor delivers up to 5,400 CFM with 3 steel blades
OSHA-compliant wire front and rear guards for maximum safety
Strong 20 gauge steel with powder coating for long-lasting, commercial use
Features handles and 5" rubber wheels for easy portability
Features
Shipping Weight
64 lb.
Width
37 1/4 Inches
Height
38 1/4 Inches
Diameter
36 Inches
Power Cord Length
10 Feet
Base Depth
20 1/2 Inches
Drum Depth
14 Inches
Amps
3.6 Amps
Phase
1 Phase
Voltage
120 Volts
Color
Black
Horsepower
1/3
Material
Steel
Max CFM
5,400 CFM
Min CFM
4,600 CFM
Motor Type
Direct Drive

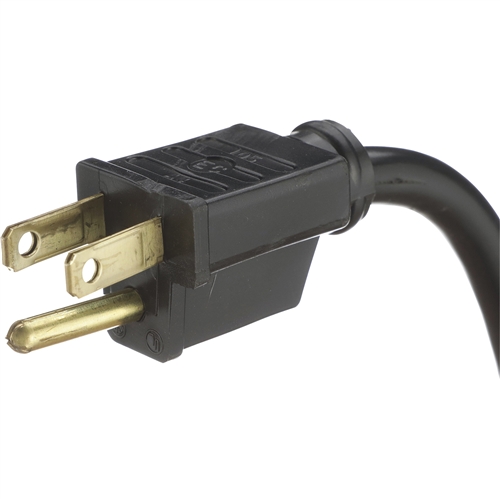

Plug Type
NEMA 5-15P
Speeds
2
Style
Fixed
Type
Drum Fans
Wheel Size
5 Inches
