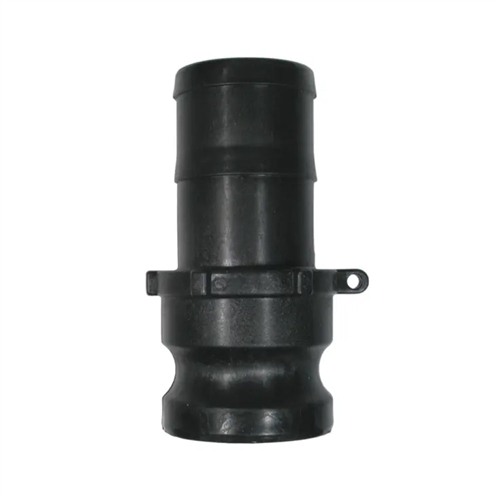

Swapping hose configurations on a pressure washer, chemical sprayer, or water-transfer pump usually means wrestling with threaded fittings or replacing a quick-connect that's already rusted solid. The BE Pressure 90.724.100 solves that with a 1" Type E polypropylene camlock adapter: a hose shank on one end for a secure barbed connection, and a male cam-and-groove fitting on the other that locks or releases in seconds when paired with a matching Type C female coupler. Built in chemical-resistant polypropylene, it's the go-to choice for anyone who needs a fitting that won't seize up or corrode after a season of outdoor use.
Built for
- Pressure washer hose changeovers - connect and disconnect supply or discharge hoses without tools, ideal for techs running multiple wands, reels, or surface cleaners off one unit.
- Water transfer pumps - link suction and discharge hoses to trash pumps, transfer pumps, and tanks for fast setup and breakdown on the job site.
- Chemical and detergent transfer - the polypropylene body and gasket resist a wide range of cleaning chemicals and mild acids better than unprotected metal fittings.
- IBC tote and drum hookups - mates with standard Type C couplers for dispensing or refilling from totes, drums, and bulk containers.
- Agricultural and irrigation setups - a lightweight, corrosion-proof alternative to brass or aluminum for hose runs exposed to water, fertilizer, or field chemicals.
Specifications
- Size: 1" male camlock x 1" hose shank (Type E)
- Material: glass-reinforced polypropylene body
- Mates with: 1" Type C, B, or D female couplers
- Working pressure: up to approximately 100-150 PSI at 1" (polypropylene, ambient temperature)
- Operation: tool-free cam-arm lock and release
What's the difference between a Type E and a Type C camlock fitting?
Type E is the male half of the connection - a cam-and-groove adapter with a hose shank on the opposite end. Type C is the matching female coupler, which also has a hose shank. The two are designed to lock together, so most hose runs use one of each rather than two of the same type.
Will polypropylene camlock fittings handle pressure washer chemicals?
Yes. Polypropylene is chemically resistant to a broad range of detergents, degreasers, and mild acids commonly used in pressure washing and vehicle cleaning, which is why it's a popular alternative to bare metal fittings that can corrode with repeated chemical exposure.
Can this fitting be used with a garden hose?
The 1-inch hose shank end is designed for 1-inch ID hose secured with a clamp, not for standard garden hose threads. For garden hose connections, a threaded adapter is typically needed between the camlock and the hose end.
Does this fitting come with a gasket?
Type E camlock adapters are typically supplied with a seal already in place on the mating female coupler side; when paired with a compatible Type C coupler, the internal gasket in the coupler creates the seal once the cam arms are closed.
What size hose does the 1-inch Type E camlock fit?
The hose shank is sized for 1-inch inside-diameter hose, secured with a standard hose clamp for a leak-free connection at the barb end.
