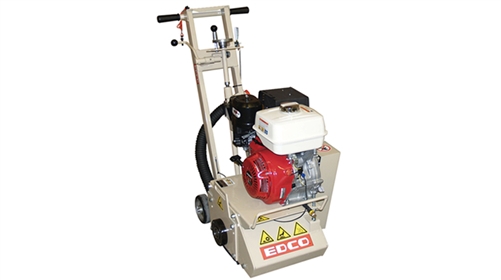

The EDCO 69100 Crete-Planer 10" Walk-Behind Scarifier is the gas-powered concrete preparation tool that contractors reach for when grinding alone is too slow and a milling machine is overkill. Powered by a Honda GX390 13 HP gas engine, this 10-inch single-drum scarifier removes 500 to 700 square feet per hour at 1/8" depth per pass, making it the right size for sidewalk repair crews, parking-deck restoration teams, and concrete contractors who need real production without dragging a tow-behind onto the job.
Use cases
- Sidewalk and ADA trip-hazard remediation: Best for shearing down curled control joints and lifted slab edges to bring panels back into ADA compliance without full slab replacement.
- Parking lot and traffic-line removal: Strips paint stripes, thermoplastic markings, and pavement reflectors at production speed for re-striping contractors.
- Interior coating removal: Ideal for taking off elastomeric, epoxy, and rubberized coatings from warehouse and industrial floors before recoating.
- Polished-concrete and epoxy prep: Knocks down high spots, removes laitance, and creates the CSP-3 to CSP-5 profile most polished and decorative systems require.
- Ramp and walkway grooving: Cuts traction grooves into smooth concrete ramps and pedestrian areas where slip resistance is required.
- Asphalt and bituminous prep: Removes weathered surface oxidation, oil stains, and crack-fill residue ahead of seal-coat or overlay.
Construction and serviceable design
The frame is fabricated from 1/4" steel and rides on heavy-duty oversized bearings, so the machine takes a beating on rough subgrade without flexing or wallowing out. With cutters in place the unit weighs 299 lbs, which is heavy enough to hold the cut without bouncing yet still movable on the larger 6" rear wheels EDCO uses for transport. A tethered emergency stop switch is standard, and the side-loading drum design lets a single operator change between 6-shaft and 8-shaft tungsten-carbide cutter assemblies without breaking down the chassis. A standard vacuum port accepts most contractor-grade dust collectors so the operation can run nearly dust-free indoors or on tight-tolerance jobs.
Specifications
- Working width: 10"
- Engine: Honda GX390, 13 HP gas, 2,446 RPM
- Production: 500-700 sq ft/hr at 1/8" depth per pass
- Frame: 1/4" steel, oversized bearings
- Drums: 6-shaft and 8-shaft, side-loading
- Vacuum port: standard
- Safety: tethered emergency stop switch
- Wheels: 6" rear for transport
- Dimensions: 38" L x 22.5" W x 41.5" H
- Weight (with cutters): 299 lbs
Frequently asked questions
What is the difference between a scarifier and a grinder?
A scarifier uses rotating cutter assemblies that chip and shear material from the surface, removing 1/16" to 1/4" per pass. A grinder uses diamond segments that abrade the surface and remove much less per pass. Scarifiers are faster for thick coatings and elevation correction. Grinders are better for fine polishing and final smoothing.
Can this remove epoxy and elastomeric coatings?
Yes. The CPM-10 is one of the standard tools for thick-coating removal on warehouse, industrial, and parking-deck floors. Match the cutter type to the coating: tungsten-carbide cutters for most paints, epoxies, and thinset; beam cutters for thicker rubberized coatings.
Does it run dust-free?
Connect the standard vacuum port to a HEPA dust extractor sized for at least 250 CFM and the operation runs nearly dust-free, which is now standard practice for OSHA silica compliance on indoor concrete prep.
How deep can it cut in one pass?
Depth is operator-controlled. Most contractors take 1/8" per pass for production scarification. The machine can take more in soft material, but multiple shallow passes give a flatter finished surface than one deep pass.
What blade or cutter does it accept?
The CPM-10 uses 6-shaft and 8-shaft side-loading drums populated with tungsten-carbide cutters, beam cutters, or milling cutters. EDCO and aftermarket suppliers stock replacement assemblies; swap takes a few minutes with hand tools.
What PPE and dust controls do I need for indoor scarifying?
OSHA's silica standard (29 CFR 1926.1153) requires a written exposure control plan plus engineering controls for any silica-generating concrete work. For indoor scarification, that typically means a HEPA-filtered dust extractor connected to the standard vacuum port, an N95 respirator at minimum (P100 in tight spaces), safety glasses, hearing protection, and steel-toe boots. Many municipalities also require posted air-quality monitoring inside occupied buildings.
How long does a set of tungsten-carbide cutters typically last?
Cutter life depends on the material. On smooth painted concrete you can see 8,000 to 12,000 square feet from a fresh set of tungsten-carbide cutters. On aggressive jobs like thermoplastic paint removal from rough asphalt or popcorn-finish leveling, expect 2,000 to 4,000 square feet per set. Carrying a backup drum assembly is standard practice for crews running production all day.
